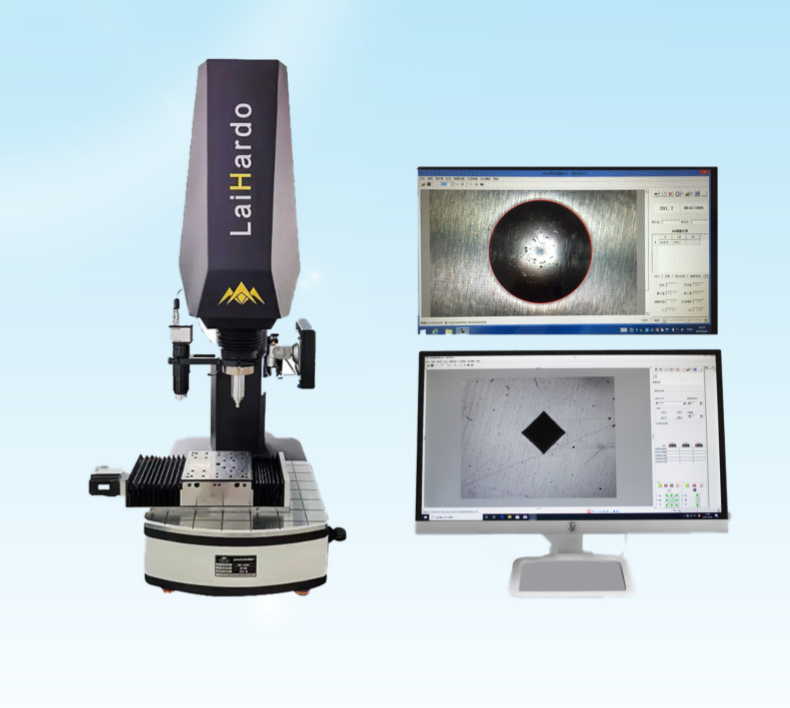

HBRV 2.0 Touch Screen Brinell Rockwell and Vickers Hardness Tester with measuring system
Model HBRV 2.0 is equipped with a newly-designed large displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech product combining the optic, mechanic and electric features.
Features:
Model HBRV 2.0 is equipped with a newly-designed large displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech product combining the optic, mechanic and electric features.
1. It has Brinell, Rockwell and Vickers three test modes, which can test several kinds of hardness.
2. One button start fully automatically,Test force loading, dwell, unload adopts automatic shifting for easy and fast operation. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion;
3. The main function is as follows: Selection of Brinell, Rockwell and Vickers three test modes; Conversion scales of different kinds of hardness; Test results can be saved for checking or be printed out, automatic calculation of maximum, minimum and average value.
4. Equiped with Brinell & vickers measuring system.
Application range:
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
Technical specification
|
Model |
HBRV 2.0 |
|
Rockwell: 3kgf(29.42N), Superfical rockwell: 10kgf(98.07N) |
|
|
Rockwell total test force |
Rockwell: 60kgf , 100kgf , 150kgf, superfical rockwell：15kgf , 30kgf, 45kgf |
|
Brinell hardness--test force |
2.5kgf(24.5),5kgf(49N),6.25kgf(61.25N),10kgf(98N),15.625kgf(153.125N),30kgf(294N),31.25kgf(306.25N),62.5kgf(612.5N)100kgf(980N), 125kgf(1225N), 187.5kgf(1837.5N), 250kgf(2450N) |
|
3kgf(29.4N)5kgf(49N),10kgf(98N),20kgf(196N),30kgf(294N),50kgf(490N), 100kgf(980N), 200kgf(1960N),250kgf(2450N) |
|
|
Indenter |
Rockwell diamond indenter, 1.5875mm ,2.5mm & 5mm ball indenter, vickers diamond indenter |
|
Magnification of microscope |
Brinell:37.5X, Vickers:75X |
|
Test force loading |
Automatic(one button loading, dwell, unloading) |
|
Max height of specimen |
200mm |
|
Head - wall distance |
200mm |
|
Dimension |
555*400*1250mm |
|
Weight |
About 150Kg |
|
Power |
AC110V,220V,50-60Hz |
Packing List:
|
Name |
Qty |
Name |
Qty |
|
Instrument Main Body |
1 set |
Diamond Rockwell Indenter |
1 pc |
|
Diamond Vickers Indenter |
1 pc |
ф1.588mm, ф2.5mm, ф5mm Ball Indenter |
each 1 pc |
|
Slipped Test Table |
1 pc |
Large Plane Test Table |
1 pc |
|
PC |
1set |
2.5×, 5× Objective |
each 1 pc |
|
CCD camera |
1 set |
Software |
1set |
|
Power Cable |
1 pc |
Touch screen display |
1pc |
|
Hardness Block HRC |
2 pc |
Hardness Block 150~250 HBW 2.5/187.5 |
1 pc |
|
Hardness Block 80~100 HRB |
1 pc |
Hardness Block HV30 |
1 pc |
|
Fuse 2A |
2 pcs |
Horizontal Regulating Screw |
4 pcs |
|
Level |
1 pc |
Usage Instruction Manual |
1 copy |
|
Screw Driver |
1 pc |
Anti-dust Cover |
1 pc |
