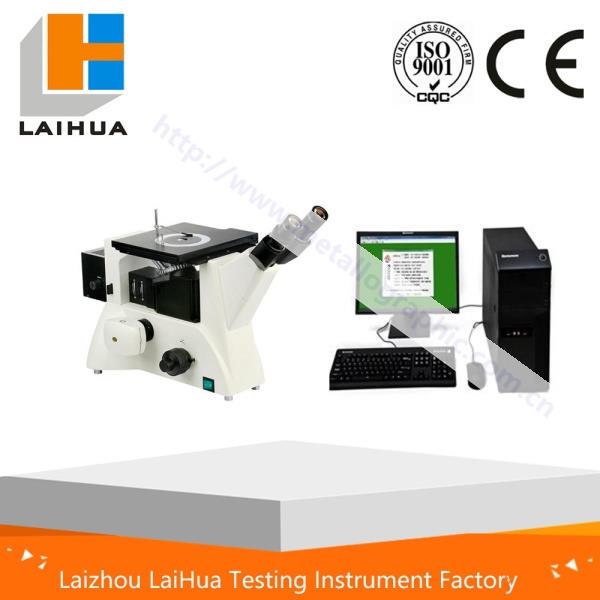

MR-2000/2000B Inverted metallurgical microscope
Metallurgical microscope price, china supplier, high quality inverted metallographic microscope
Features and Applications:
1. Equipped with excellent UIS optical system and modularization function design.Users can update system conveniently to achieve polarization and dark field observation.
2. Compact and steady main frame body to resist shock and vibration
3. Ideal ergonomic design, easy operation and wider space.
4. Suitable for research in metallography, mineralogy, precision engineering, etc. It’s an ideal optical instrument for micro observation in metallographic structure and surface morphology.
Specification:
Eyepiece
10X wide field plan eyepiece and field of view number is Φ22mm, the eyepiece interface is Ф30mm
Infinity plan achromatic objectives
MR-2000 （Equipped bright field objective）
PL L10X/0.25 working distance：20.2 mm
PL L20X/0.40 working distance：8.80 mm
PL L50X/0.70 working distance：3.68 mm
PL L100X/0.85（dry） working distance：0.40 mm
MR-2000B（Equipped with dark / bright field objective）
PL L5X/0.12 working distance：9.70 mm
PL L10X/0.25 working distance：9.30 mm
PL L20X/0.40 working distance：7.23mm
PL L50X/0.70 working distance：2.50 mm
Eyepiece tube
Hinged binocular tube, with an observation angle of 45°, and a pupil distance of 53-75mm
Focusing system
Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm.
Nosepiece
Quintuple (Backward ball bearing inner locating)
Stage
Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm.
Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф12mm.
Illumination system
MR-2000
6V30W halogen and brightness enable control.
MR-2000B
12V50W halogen and brightness enable control.
Integrated field diaphragm , aperture diaphragm and puller type polarizer.
Equipped with frosted glass and yellow ,green and blue filters
