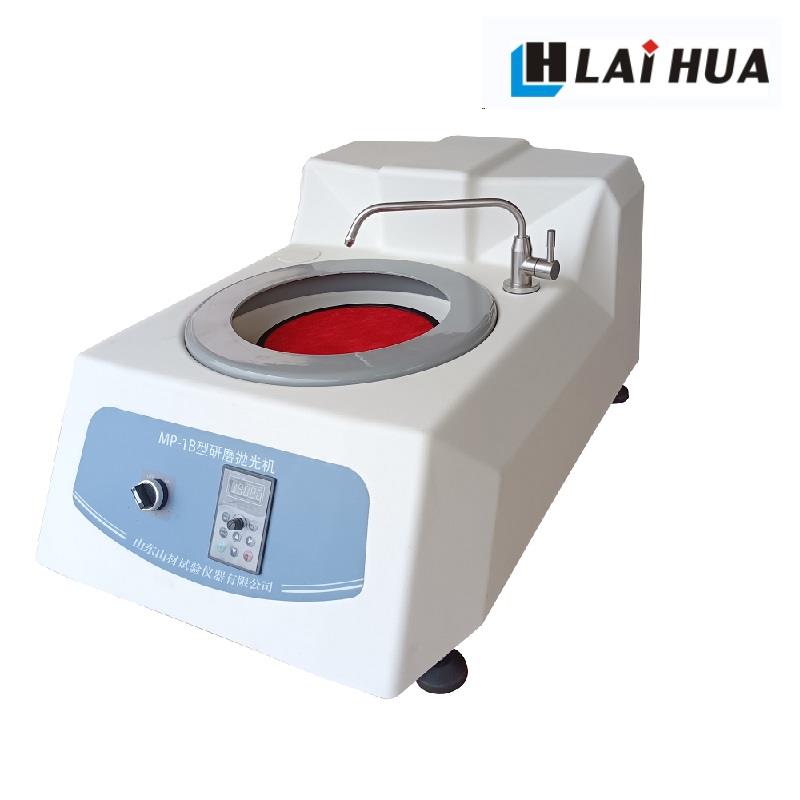

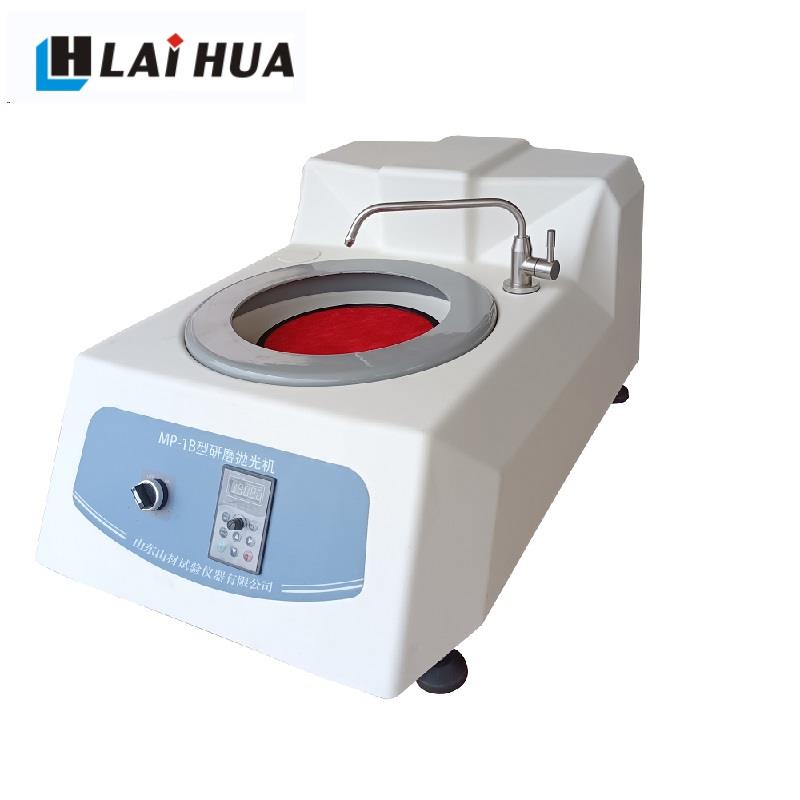

MP-1B Metallographic Grinding Polishing Machine
Metallographic grinder polisher
Features and Application:
1. single disc
2. stepless speed changing grinding and polishing with rotating speed from 50 to 1000 rpm.
3. Used for rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing.
4. easy to operate, safe and reliable, is an ideal equipment for the labs of plants, research institutes and universities and colleges.
Specification:
| Diameter of working disc | 250mm(203mm is optional) |
| Working disc rotating speed | 50-1000rpm |
| Diameter of abrasive paper | 230mm |
| Power supply | 220V/50HZ |
| Motor power | YSS7124,550W |
| Machine size (L*W*H) | 730*450*370 mm |
| Weight | 35kg |
