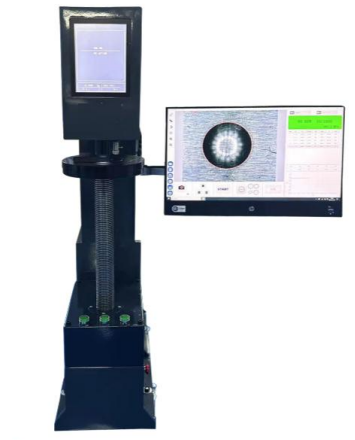

ZHB-3000DZ Heightened Fully-automatic Brinell Hardness Tester

Features and Function:

* The brinell hardness tester adopts 8-inch touch screen and high-speed ARM processor, which is intuitive, user-friendly and easy to operate.It is characterized with fast operation speed, huge amount of database storage, data automatic correction, and can provide data broken line report;

* An industrial tablet computer is installed on the side of the body, with a built-in industrial-grade camera. CCD image software is used for processing. Data and images are directly exported.

* Screw can go up and down automatically;

* The machine body is made of high quality cast iron in one time, with the processing technology of automobile baking paint;

* Equipped with automatic turret, automatic switch between the indenter and objectives, which is convenient to use;

* The maximum and minimum hardness values can be set. When the test value exceeds the set range, an alarm sound will be issued;

* With the software hardness value correction function, the hardness value can be directly modified in a certain range;

* With the function of database, the test data can be automatically grouped and saved. Each group can save 10 data and more than 2000 data;

* With hardness value curve display function, the instrument can intuitively display hardness value changes.

* Full hardness scale conversion;

* Closed-loop control, automatic loading, dwell and unloading;

* Equipped with high definition double objectives; can measure indentation of different diameters under test forces from 31.25-3000kgf;

* Equipped with wireless bluetooth printer, can export data through RS232 or USB;

* Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys. It’s also applicable to the hardness testing of hard plastic, bakelite and other non-metal materials. It has wide range of applications, suitable for precision measurement of planar plane, and surface measurement is stable and reliable.

Technical Parameter:

Measuring range: 8-650HBW

Test force: 612.9,980.7,1226,1839, 2452, 4903,7355, 9807, 14710, 29420N（62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf）

Max. height of test piece: 460mm

Depth of throat: 250mm

Hardness Reading: LCD digital display

Objective: 1x, 2x

Min measuring unit : 5μm

Diameter of tungsten carbide ball: 2.5, 5, 10mm

Dwelling time of test force:1~99S

CCD: 5 mega-pixel

CCD measuring method: Manual/Automatic

Power supply: 220V AC 50HZ

Dimensions： 700*368*1200mm

Weight Approx. 400kg 
