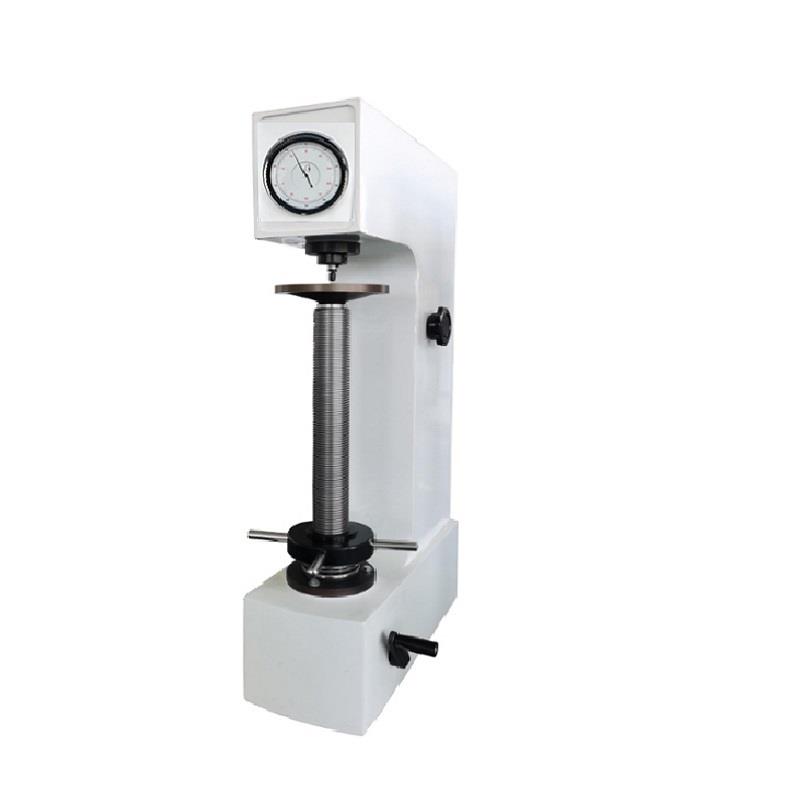

HR-150B Heightened Rockwell hardness tester
manual heightened rockwell hardness tester,ce certification hardness tester
Features:
Manual testing process, no need for electric controlling
It's steady and reliable for testing of curved surface
Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18
Applications:
It is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
Specification:
|
Model |
HR-150B |
|
Measuring range |
20-88HRA, 20-100HRB, 20-70HRC |
|
Test force |
588.4, 980.7, 1471N (60, 100, 150kgf) |
|
Max. height of test piece |
400mm |
|
Depth of throat |
165mm |
|
Min. scale value |
0.5HR |
|
Dimensions |
466 x 238 x 630mm |
|
Weight |
approx. 140kg |
Standard accessories：
|
Large flat anvil: 1 pc. |
Small flat anvil: 1 pc. |
|
V-notch anvil: 1 pc. |
1/16" steel ball penetrator: 1 pc. |
|
Diamond cone penetrator: 1 pc. |
Rockwell standardized block: 5 pcs |
