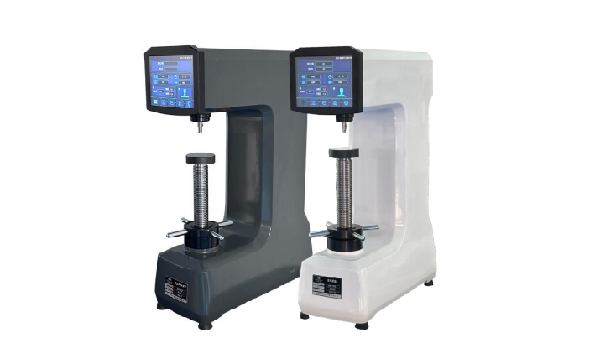

HSRS-45 Digital screen Superficial rockwell hardness tester
metal hardness tester, Superficial rockwell hardness testing machine
Feature :
HSRS-45 Digital Superficial Rockwell Hardness Tester adopts novel-designed large LCD screen to display,as well as menu structure.It mainly functions are as follows:1. Selection of Rockwell hardness scales,2. Exchange hardness values among hardness scales, 3. Output the results of hardness measurement with printer,4. RS-232 hyper terminal setting is with good reliability,excellent operation and easy watching.
Applications:
Surface hardened steel,surface heat treating and chemical treating materials,copper,aluminum alloy sheet,zinc layers,chrome layers,tin layers,bearing steel,cold and hard casting parts,etc.
specifications:
|
Model |
HSRS-45 |
|
Measuring range |
70-91HR15N, 42-80HR30N, 20-77HR45N 73-93HR15T, 43-82HR30T, 12-72HR45T
|
|
Test force |
147.1, 294.2, 441.3N (15, 30, 45kgf) |
|
Max. height of test piece |
185mm |
|
Depth of throat |
165m |
|
Min. scale value |
0.1HR |
|
Power supply |
220V AC or 110V AC, 50 or 60Hz |
|
Dimensions |
500 x 150 x 750mm |
|
Weight |
approx. 100kg |
Standard accessories
|
Large flat anvil: 1 pc. |
Small flat anvil: 1 pc. |
|
V-notch anvil: 1 pc. |
Diamond cone penetrator: 1 pc. |
|
1/16" steel ball penetrator: 1 pc. |
Superficial Rockwell standardized block: 4 pcs. |
|
Printer: 1 pc. |
|
