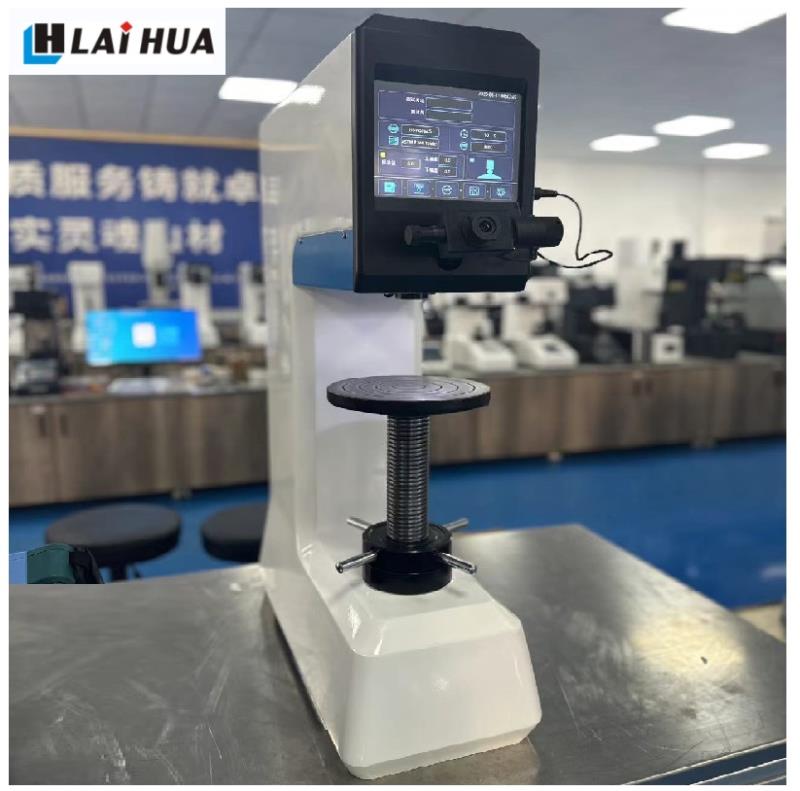

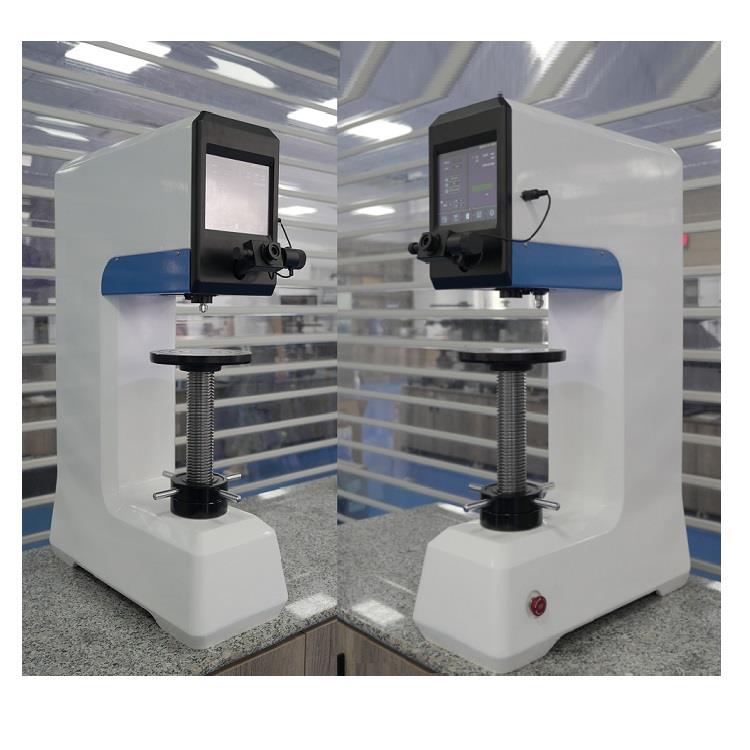

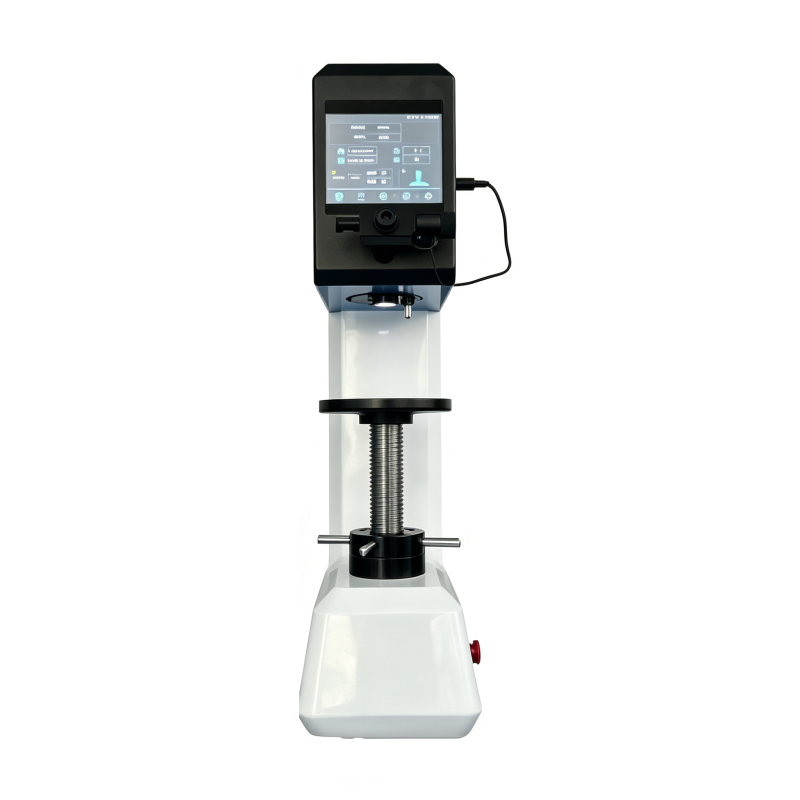

HBS-3000A Electric Load Type Brinell Hardness Tester
Integrated product of precise mechanical structure; * Closed-loop control technology * Automatic loading, dwell and unloading; electric reversing switch
Features and Function:
Integrated product of precise mechanical structure;
Closed-loop control technology
Automatic loading, dwell and unloading; electric reversing switch;
The indentation can be directly measured on the instrument through the micrometer eyepiece;
Key in the measured indentation diameter, hardness value will be displayed on the touch screen;
Hardness conversion between different hardness scales;
Automatic test process, no human operating error;
Large touch screen of testing process, easy operation;
Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
Application:
It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys. It’s also applicable to the hardness testing of hard plastic, bakelite and other non-metal materials. It has wide range of applications, suitable for precision measurement of planar plane, and surface measurement is stable and reliable.
Technical Parameter:
|
Measuring range |
8-650HBW |
|
Test force |
612.9,980.7,1226,1839, 2452, 4903,7355, 9807, 14710, 29420N（62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf） |
|
Max. height of test piece |
280mm |
|
Depth of throat |
170mm |
|
Turrent |
Auto Turrent |
|
Hardness Reading |
touch screen |
|
Microscope |
20X digital micrometer eyepiece |
|
Min Value of drum whee |
1.25μm |
|
Diameter of tungsten carbide bal |
2.5, 5, 10mm |
|
Dwelling time of test force |
0~60S |
|
Data output |
Printer |
|
Power supply |
AC110V/220V 60/50HZ |
Standard Accessories:
|
Main unit 1 |
20x micrometer eyepiece 1 |
|
Large flat anvil 1 |
Brinell standardized block 2 |
|
Small flat anvil 1 |
Power cable 1 |
|
V-notch anvil 1 |
Spanner 1 |
|
Tungsten carbide ball penetrator：Φ2.5, Φ5, Φ10mm, 1 pc. each |
User manual: 1 |
|
Anti-dust cover 1 |
|
