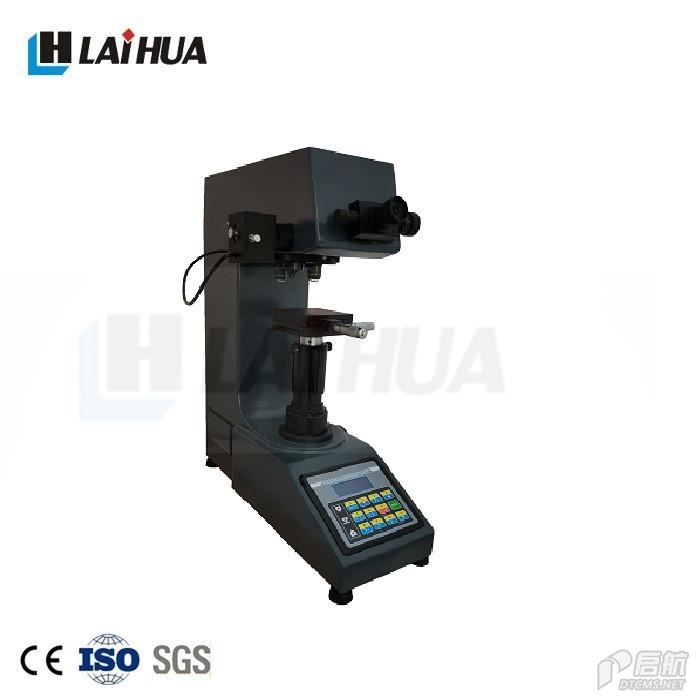

HV-5 vickers hardness tester
Low Load Vickers Hardness Tester,Small Load Micro Vickers hardness Testers, Vickers Durometer
Feature:
Testing forces cover Micro Vickers and Vickers testing demands
Automatic testing process, no human operating error
Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92
The instrument adopts closed-loop loading control system
Use:
It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications：
|
Measuring range |
5-3000HV |
|
Test force |
2.942、4.903、9.807、19.61、24.52、29.42、49.03N（0.3、0.5、1、 2、 2.5、 3、 5 kgf）
|
|
Hardness scale |
HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, |
|
Magnifications of the measuring system |
400X (measuring), 200X (observing)
|
|
Min. scale value of the optical micrometer |
0.1μm |
|
Measuring range |
200μm |
|
Max. height of test piece |
170mm |
|
Depth of throat |
130mm |
|
Power supply |
220V AC or 110V AC, 50 or 60Hz |
|
Dimensions |
530×280×630 mm |
|
Weight: approx |
35kg |
Standard accessories:
|
Vickers Indenter |
1 piece |
|
Objective |
2 pieces |
|
Accessories Box |
1 piece |
|
Eyepiece |
1 piece |
|
Cross Testing Table |
1 piece |
|
Level Regulation Screw |
4 pieces |
|
Level |
1 piece |
|
Screwdriver |
1 piece |
|
Internal Hexangular Spanner |
1 piece |
|
Dust-Preventing Cover |
1 piece |
|
Power Source Cable |
1 piece |
|
Fuses |
2 pieces |
|
Halogen Lamp |
1 piece |
|
Vickers Hardness Block |
2 pieces |
|
Usage Instruction Manual |
1 copy |
Optional accessories:
|
Platelet Fixture |
Plane-holding Fixture |
|
Filament Fixture |
Knoop Indenter |
|
Hardness Test Blocks |
|
|
Metallurgical Specimen Cutter |
Metallurgical Specimen Mounting Press |
|
Metallurgical Specimen Polisher |
CCD Image Measuring System |
