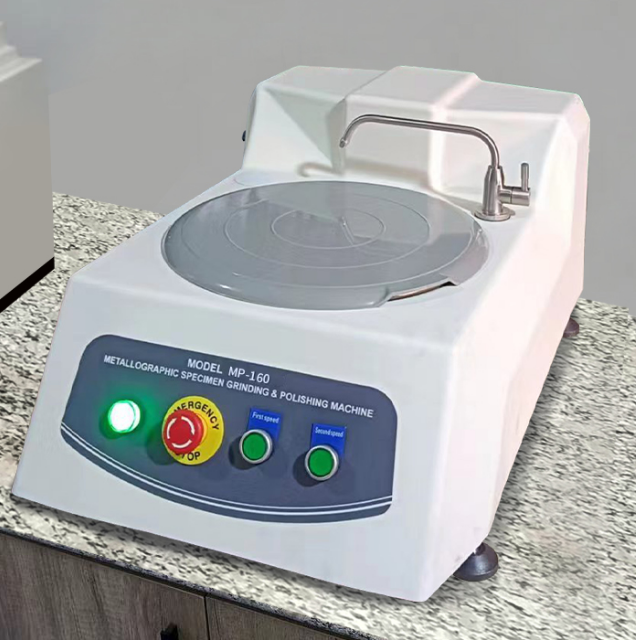

MP-160 Metallographic Sample Grinding Polishing Machine
Metallographic grinder and polisher
Features and Application:
1. Equipped with single disc
2. Two rotating speeds, 300rpm and 600rpm
3. Equipped with cooling system that can cool down the specimen during pre-grinding so as to prevent overheating and damaging the metallographic structure.
4. Applicable to rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. Ideal option for the lab of factories, science and research institutions and universities.
Technical Parameter:
Diameter of working disc：203mm（or 250mm）
Rotating Speed of working disc：300/600 rpm（rotating direction at will）
Working Voltage：220V/50Hz
Diameter of Abrasive Paper：φ200mm (250mm can be customized)
Dimension：750*500*350mm
Net Weight：38KG
Standard Configuration:
Main Machine
1 PC
Inlet Pipe
1 PC
Grinding & Polishing Disc
1 PC
Outlet Pipe
1 PC
Abrasive Paper 200mm
1 PC
Foundation Screw
4 PCS
Polishing Cloth （velvet）200mm
1 PC
Power Cable
1 PC
