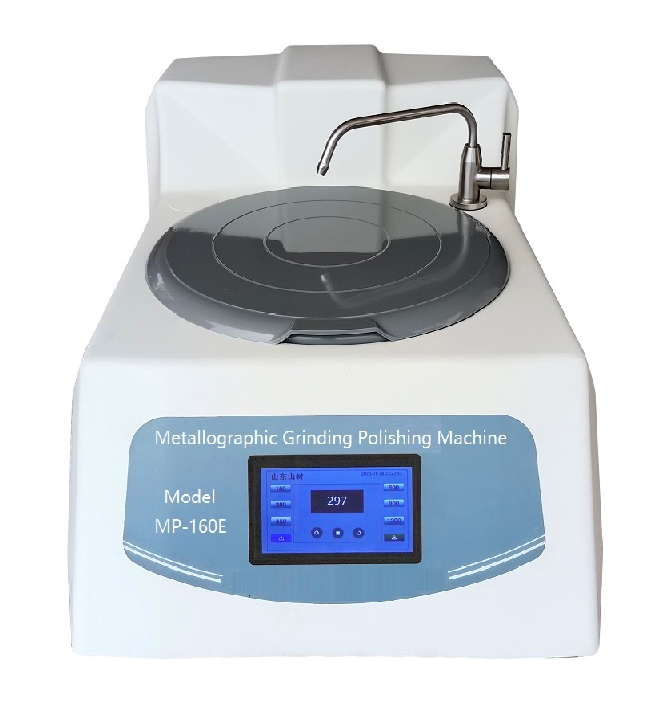

MP-160E Metallographic grinding polishing machine

Metallographic grinder and polisher

Features and Applications:

1. Equipped with single disc
2. Two rotating speeds, 300rpm and 600rpm
3. Equipped with cooling system that can cool down the specimen during pre-grinding so as to prevent overheating and damaging the metallographic structure.
4. Applicable to rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. Ideal option for the lab of factories, science and research institutions and universities.



Technical Parameter:

Diameter of working disc203mmor 250mm

Rotating Speed of working disc50-1200 rpm(step-less speed changing) Or 150/300/450/600/900/1200 rpm(six-level constant speed)



Working Voltage220V/50Hz

Diameter of Abrasive Paperφ200mm (250mm can be customized)

Dimension750*500*350mm,packing :790X550X440mm

Net Weight40KG/53kgs

Standard Configuration:

Main Machine

1 PC

Inlet Pipe

1 PC

Grinding & Polishing Disc

1 PC

Outlet Pipe

1 PC

Abrasive Paper 200mm

 1 PC

Foundation Screw

4 PCS

Polishing Cloth velvet200mm

 1 PC

Power Cable

1 PC
