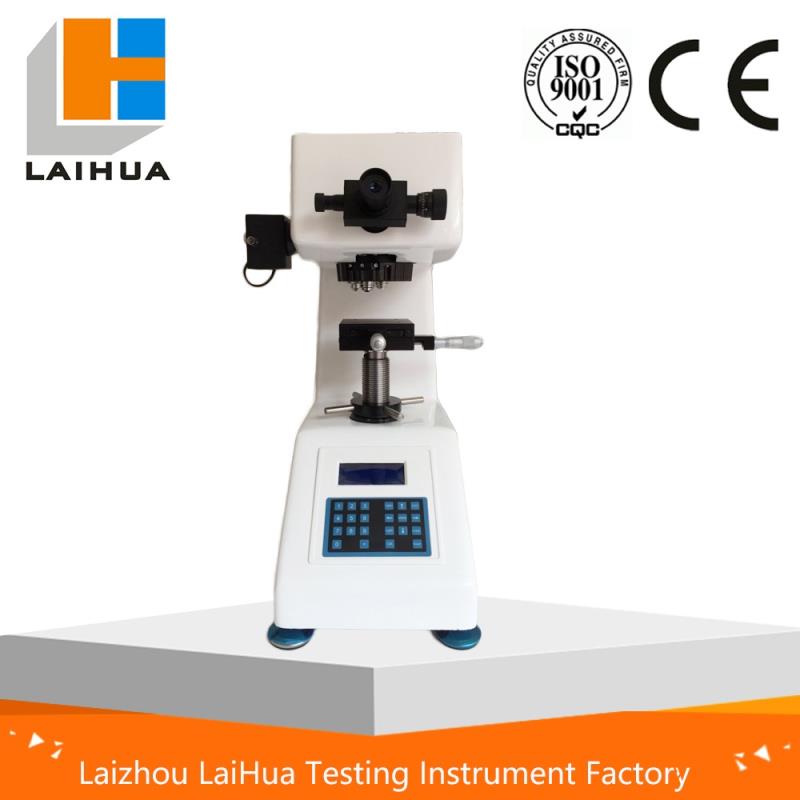

HV-1000/1000Z Micro hardness tester
Micro vickers hardness tester,Diamond Hardness Tester
Feature :
* Frictionless loading shaft, high precision testing force
* Automatic testing process, no human operating error
* Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384
Use:
It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
|
Hardness measuring range |
5-3000HV |
|
Test force |
0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904,9.807N (10, 25, 50, 100, 200, 300, 500, 1000gf) |
|
Hardness scale |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3,HV0.5, HV1 |
|
Magnifications of the measuring system |
400X (measuring), 100X (observing) |
|
Min. scale value of the optical micrometer |
0.025μm |
|
Measuring range |
200μm |
|
Max. height of test piece |
75mm |
|
Depth of throat |
110mm |
|
Power supply |
220V AC or 110V AC, 50 or 60Hz |
|
Dimensions |
470 x 320 x 500mm |
|
Weight: approx |
40kg |
Standard accessories:
|
Coordinate anvil |
1 pc.(Table size: 100 x 100mm, travel: 25 x 25mm, grade division of micrometer head: 0.01mm) |
|
Thin shaft anvil (Φ0.3- Φ5mm) |
1 pc. |
|
Thin plate anvil |
1 pc. |
|
Flat nose pliers |
1 pc. |
|
Large V-notch anvil |
1 pc. |
|
Small V-notch anvil |
1 pc. |
|
Diamond pyramid penetrator |
1 pc. |
|
Micro-Vickers standardized block |
2 pcs. |
Optional accessories:
Knoop penetrator
SP-5 Vickers Video measuring apparatus
CCD camera and image processing system
