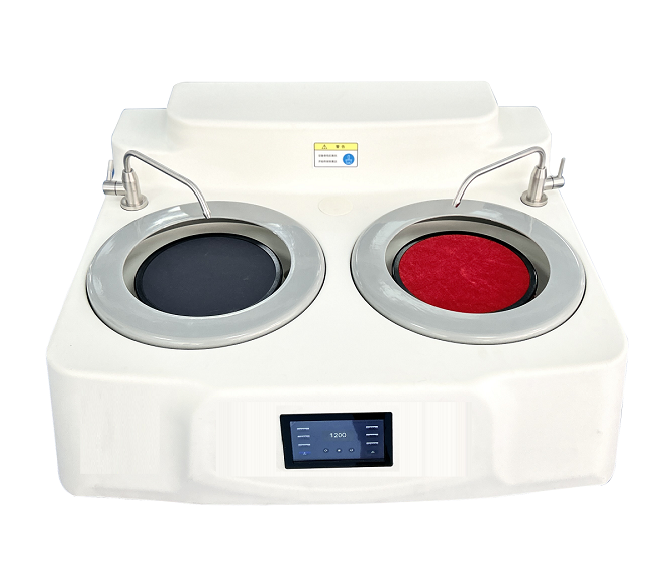

MP-260E Metallographic grinding polishing machine

Features and Applications:

1. Equipped with double discs，one motor control, can rotate clockwise or counter-clockwise.

2. Touch screen operation.  50-1200 rpm(step-less speed changing)Or 150/300/450/600/900/1200 rpm(six-level constant speed)

3. Equipped with cooling system that can cool down the specimen during pre-grinding so as to prevent overheating and damaging the metallographic structure.

4. Applicable to rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. Ideal option for the lab of factories, science and research institutions and universities.

Technical Parameter:

Diameter of working disc：200mm (or 250mm customized)

Rotating Speed of working disc：50-1200 rpm(step-less speed changing)

Or 150/300/450/600/900/1200 rpm(six-level constant speed)

Working Voltage：220V/50Hz

Diameter of Abrasive Paper：φ200mm

Motor： YSS7124, 550W

Dimension：700*600*270mm

Weight：45KG

Configuration:
