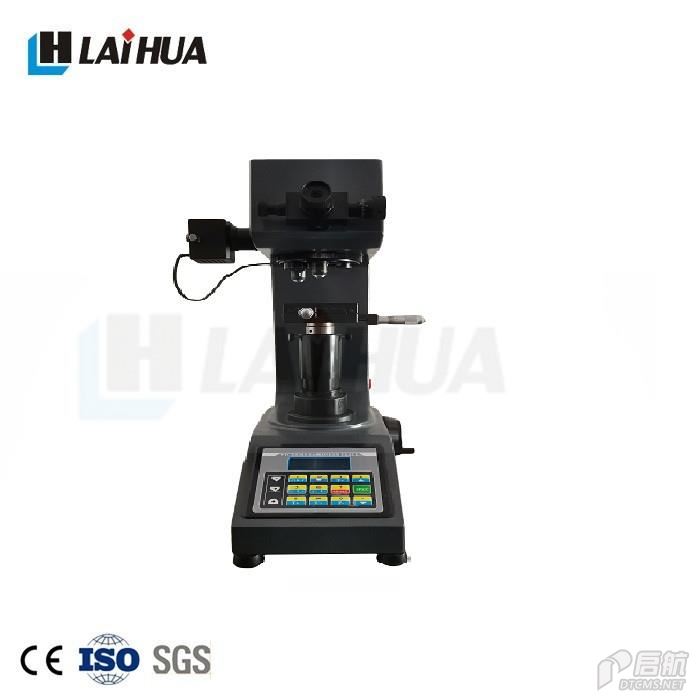

HV-1000B/A micro hardness tester
micro hardness tester factory,micro vickers hardness tester manufaturer
Feature :
HV-1000B/A Micro Vickers Hardness Tester made with a unique and
precision design in the field of mechanics, optics and light source, is able to
produce a clearer image of indentation and hence a more precise measurement.
By means of a 10Χ objective and a 40Χ objective and a 10Χ microscope for
measurement.
It shows measuring method, the testing force value, the indentation length,
hardness value, the dwell time of the testing force, as well as the number of
measurement on the LCD screen. During the operation, put in the diagonal length
with the keys on the keyboard, and the built-in calculator automatically
calculates the hardness value and shows it on the LCD screen.
The tester has a threaded interface that can be linked to the digital camera
and CCD pickup camera.
The CCD Automatically Image Measuring Device can be equipped on present tester
according to user’s requirement.
The LCD Video Measuring Device can be equipped on the present tester according
to user’s requirement.
According to user’s requirement , the rester also can measure Knoop hardness
value after equipping a Knoop indenter.
Use:
It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications:
Testing Range
1HV~2967HV
Test Force
0.098N(10g)、0.246N(25g)、0.49N(50g)、0.98N(100g) 1.96N(200g)、4.90N(500g)、9.80N(1000g)
Max Height of the Specimen
100mm
Max Distance from the Indenter Center
to the Instrument Panel
98mm
Lesn/indenters with
HV-1000B:With Hand Turret
Carriage Control
Automatic(loading /holding-up of the load/unloading)
Amplification of the microscope
100×,400×
Dwell Time of the Test Force
(5-60)S
Min.Graduation Value of the Testing Drum Wheel
0.25um
Dimension of the XY Table
100×100mm
Movement Field of the XY Table
25×25mm
Light source/Power Supply
220V,60/50Hz
Weight/Gross Weight:45kg Net Weight
45kg
Package Dimensions
480×305×545mm
HV-1000A:With Automatic Turret
Weights
6 PCS
Micro vickers
indenter
1PCS
Objective
2 PCS
Weight
Axis
1 PC
Cross
Testing Table
1 PC
Platelet
Fixture
1 PC
Plane-holding
Fixture
1 PC
Filament Fixture
1 PC
Screw Drivers
2 PCS
Horizontal
Regulating Screws
4 PCS
Level
1 PC
Power
Cord
1 PC
Repair
Fuses (1A)
2 PCS
10×Digital Micro Eyepiece
1 PC
Vickers
Hardness Blocks
2 PCS (one
middle-sized HV0.2 block and one high-sized HV1 block)
The USAGE
Instruction Manual
1 PC
Knoop Indenter
Hardness Test Blocks
CCD Image Measuring System
Metallurgical Specimen Mounting Press
Metallurgical Specimen Polisher
Metallurgical Specimen Cutter
Standard
accessories:
Optional
accessories:
