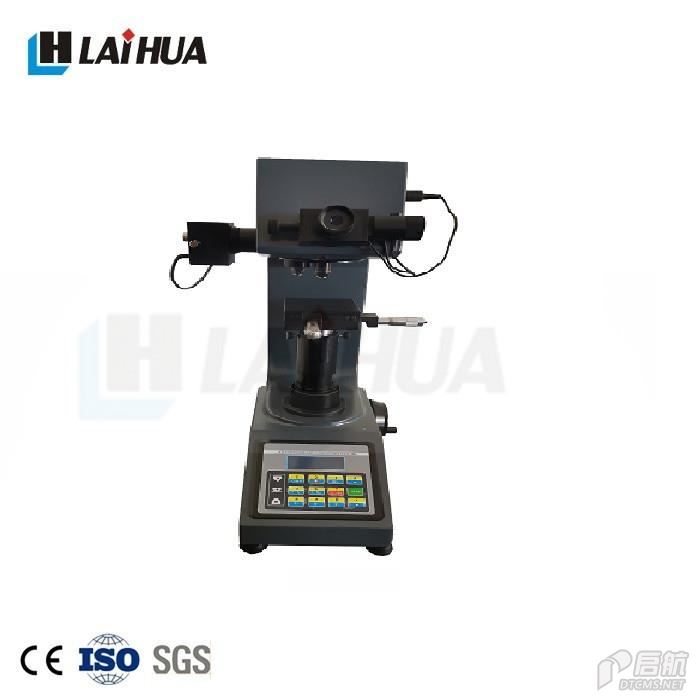

HVS-1000B/A Digial disply micro hardness tester
Micro hardness tester with software,Vickers hardness tester with computer
Feature :
HVS-1000B/A Digital Micro Vickers Hardness Tester made with a unique and precision design in the field of mechanics,optics and light source,is able to produce a clearer image of indentation and hence a more precise measurement.
By means of a 10×objective and a 40×objective for measurement,the tester has a wider measurement field and a broader usage range.
It shows measuring method,the testing force value,the indentation length,hardness value,the dwell time of the testing force ,as well as the number of measurement on it LCD screen.Beside,it has such functions as registering year,month and date,measuring result,treating data,outputting information with its built-in printer.
The tester has a threaded interface that can be linked to the digital camera and CCD pickup camera,and a RS232 interface as well .
The light source of the tester is firstly and uniquely adopted cold light source,and hence its life can reach 100000 hours.The user also can select halogen lamp as light source according to their requirement.
The CCD Automatically Image Measuring Device can be equipped on present tester according to user’s requirement.
The LCD Video Measuring Device can be equipped on the present tester according to user’s requirement.
According to user’s requirement, the tester also can measure Knoop hardness value after equipping a Knoop indenter.
Use:
Ferrous metals,non-ferrous metals,IC thin sections,coatings,ply-metals;
Glass,ceramices.agate,precious stones;thin plastic sections;ect.
Hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Specifications:
Test forces
0.098N(10gf), 0.245N(25gf), 0.49N(50gf), 0.9807N(100gf), 1.961N(200gf),
2.942N(300gf), 4.903N(500gf), 9.807N(1000gf)
Test Force Application Method
automatic loading and unloading
Amplification of the Microscope
400× (for the
measurement),
100× (for the
observation)
Dwell time of the testing force
0~60s (5 seconds as a unit)
Lesn/indenters with
HVS-1000B:With Motorized Turret
Min. graduation value of
the testing drum wheel
0.0625μm
Max. height of the specimen
100 mm
Distance between the center point of the indenter and the exterior
panel
98mm
Weight of the main body
30kg
Power source
AC220V/50~60Hz
Overall dimension (L x W x H)
(480×305×545)mm
HVS-1000A: With Atmotica Turret
Displayed Hardness Value
|
Hardness Range |
Max Tolerance |
|
（200～300）HV0.05 |
±5.0% |
|
(400～500)HV0.1，（700～800）HV0.2 |
±4.0% |
|
(700～800)HV0.5，HV1 |
±3.0％ |
Standard accessories
|
Coordinate anvil |
(Table size: 100 x 100mm, travel: 25 x 25mm, grade division of micrometer head: 0.01mm) |
|
Thin shaft anvil (Ø0.3- Ø5mm) |
1 pc. |
|
Thin plate anvil |
1 pc. |
|
Flat nose pliers |
1 pc. |
|
Large V-notch anvil |
1 pc. |
|
Diamond pyramid penetrator |
1 pc. |
|
Micro-Vickers standardized block |
2 pcs. |
optional accessorise:
Knoop Indenter
Hardness Test Blocks
Metallurgical Specimen Cutter
Metallurgical Specimen Mounting Press
Metallurgical Specimen Polisher
CCD Image Measuring System
