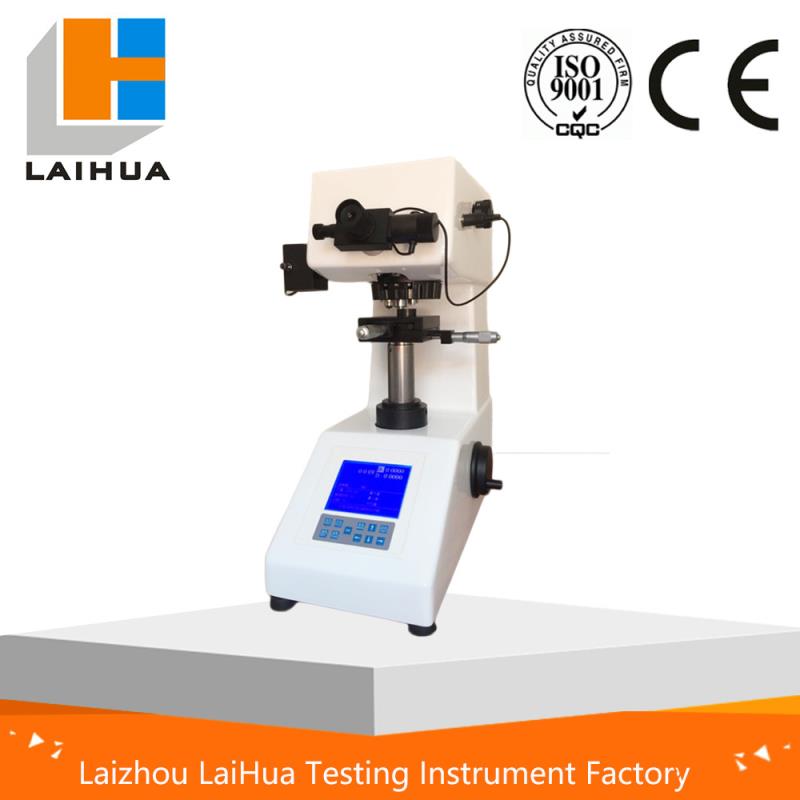

MHV-1000/Z Large screen digital display micro hardness tester
Screen LCD Micro Vickers Hardness Tester Price
Feature :
Automatic turret shifting between penetrator and objective lens, RS232 data interface, built-in printer
Hardness conversion between different hardness scales
Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384
Use:
It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications：
|
Measuring range |
5-3000HV |
|
Test force |
0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N (10, 25, 50, 100, 200, 300, 500, 1000gf) |
|
Hardness scale |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
|
Magnifications of the measuring system |
400X (measuring), 100X (observing) |
|
Min. scale value of the optical micrometer |
0.01μm |
|
Measuring range |
200μm |
|
Max. height of test piece |
75mm |
|
Depth of throat |
110mm |
|
Power supply |
220V AC or 110V AC, 50 or 60Hz
|
|
Dimensions |
470 x 320 x 500mm |
|
Weight: approx |
40kg |

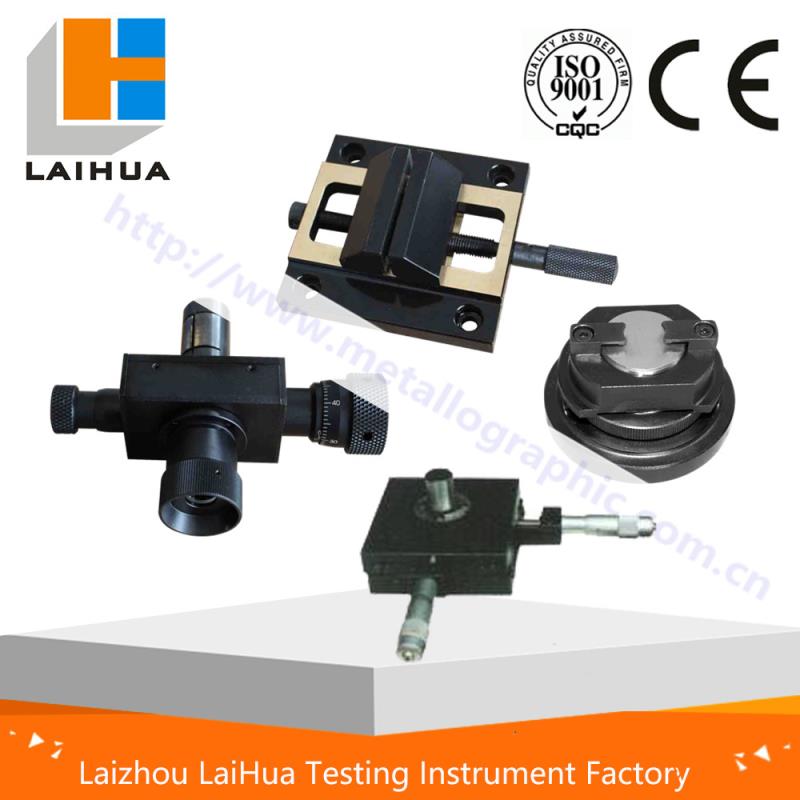

Standard accessories
|
Coordinate anvil |
1 pc. (Table size: 100 x 100mm, travel: 25 x 25mm, grade division of micrometer head: 0.01mm)
|
|
Thin shaft anvil (Ø0.3- Ø5mm) |
1 pc. |
|
Thin plate anvil |
1 pc. |
|
Flat nose pliers |
1 pc. |
|
Large V-notch anvil |
1 pc. |
|
Small V-notch anvil |
1 pc. |
|
Diamond pyramid penetrator |
1 pc. |
|
Micro-Vickers standardized block |
2 pcs. |
Optional accessories
|
RS232 software |

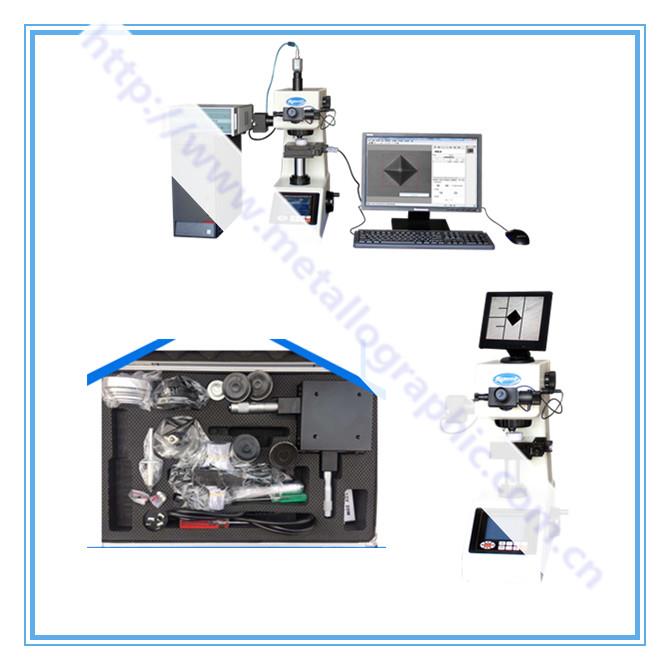

SP-5 Vickers Video measuring apparatus |
|
Knoop penetrator |
CCD camera and image processing system |
