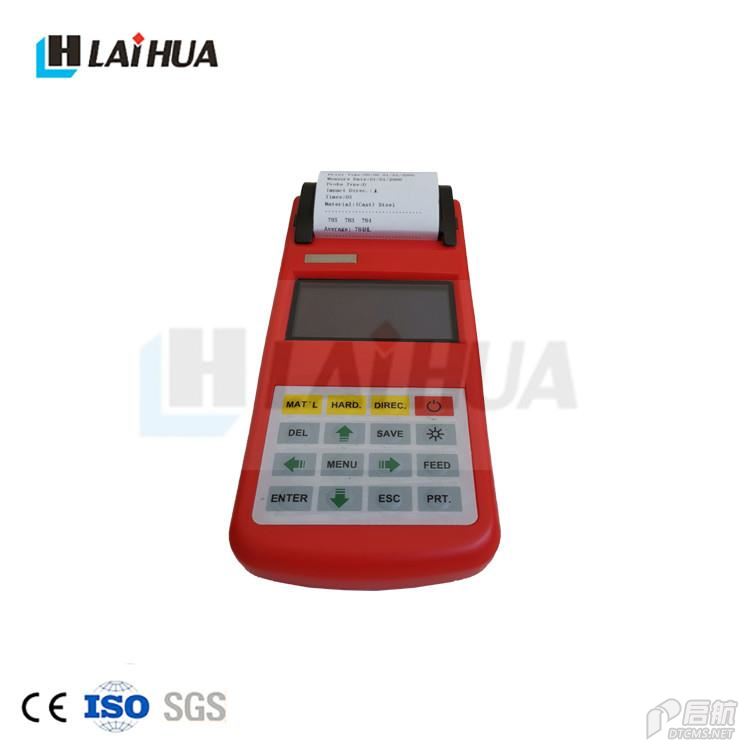

HLN110 Leeb Hardnes tester

Applications:

l  Die cavity of molds

l  Bearings and other parts

l  Failure analysis of pressure vessel, steam generator and other equipment

l  Heavy work piece

l  The installed machinery and permanently assembled parts

l  Testing surface of a small hollow space

l  Material identification in the warehouse of metallic materials

l  Rapid testing in large range and multi-measuring areas for large-scale work piece

Features:

* Wide measuring range. Based on the principle of Leeb hardness testing theory. It

can measure the Leeb hardness of all metallic materials.

* Large screen 3 inch, showing all functions and parameters.

* Test at any angle, even upside down.

* Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.

* Seven impact devices are available for special application. Automatically identify

the type of impact devices.(optional)

* Large capacity memory could store 500 groups (Relative to average times32～1 ) information including single measured value, mean value, testing date, impact direction, impact times, material and hardness scale etc.

* Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

* Battery information indicates the rest capacity of the battery and the charge status.

* User calibration function.

* Software to connect with PC via USB port.

* With EL background light.

* Thermal printer integrated, convenient for in field printing.

* NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).

* Auto power off to save energy.

* Outline dimensions：212mm×80mm×32mm

Technical Parameter:

Measure scope:170HLD~960HLD.

Testing direction: 360℃.

Testing material:10 varieties.

Hardness scale: HL HRC HRB HRA HB HV HS.

Display:Dot Matrix LCD

Integrated data memory： 500 measurement series.(Relative to average times 32～1)

Battery:  6V( Ni-MH battery pack)

Power supply:9V/500mA

Recharge time:2.5-3.5hours

Continuous operating period：about 150 hours（with default brightness）

Communication：USB1.1

Standard configuration:

1 Main Unit

1 D type impact device

1 Small support ring

1 piece of Nylon brush (A)

1 High-value leeb hardness test block

1 Communication cable

1 6V NI-MH Battery

1 9V Battery charger

1 Instruction manual

1 data review software

1 box
