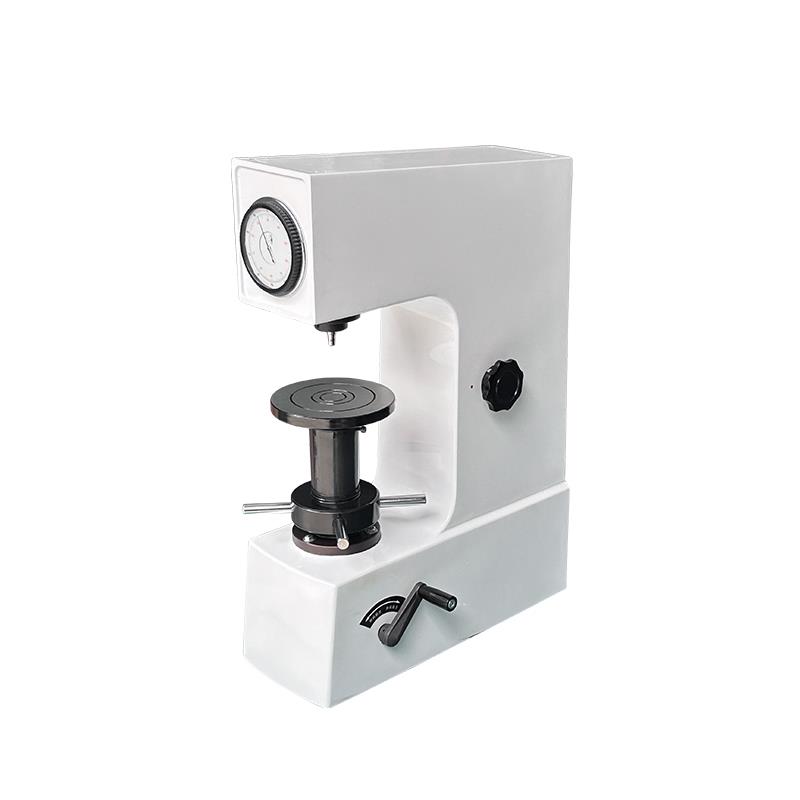

Model XHRD-150 Motor-Driven plastic rockwell hardness tester

plastic rockwell hardness testing mechine,Composite material hardness testing


Feature:


Automatic testing process, no human operating error

Precision conforms to the Standards of JB/T 7409



Use:

     It's suitable to determine the Rockwell hardness of plastic, composite materials, all kinds of friction materials, soft metals and non-metal soft materials. * Frictionless loading shaft, high precision testing force.


Specifications:

Measuring range

70-100HRE, 50-115HRL, 50-115HRM, 50-115HRR

Test force

588.4, 980.7, 1471N (60, 100, 150kgf)



Max. height of test piece

185mm

Depth of throat

165mm

Min. scale value

0.5HR

Power supply

220V AC or 110V AC, 50 or 60Hz

Dimensions

505 x 250 x 700mm

Weight

approx. 98kg


Standard Accessories:


Large flat anvil

1 pc.

Small flat anvil

1 pc.

V-notch anvil

1 pc.

Steel ball penetrator

1/8", 1/4", 1/2", 1 pc. Each

Plastic Rockwell standardized block

4 pcs.
