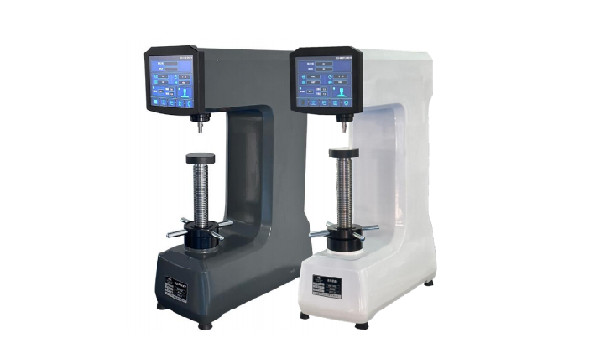

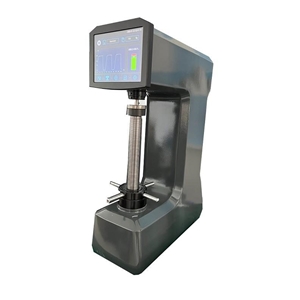

XHRS-150 Digital display plastic rockwell hardness tester

Plastic Hardness Tester Price,Electric Plastic Rockwell Hardness Tester/Durometer


Feature:

Automatic testing process, no human operating error

Precision conforms to the Standards of JB/T 7409

Use:

     It's suitable to determine the Rockwell hardness of plastic, composite materials, all kinds of friction materials, soft metals and non-metal soft materials. * Frictionless loading shaft, high precision testing force.

Specifications:

Measuring range

70-100HRE, 50-115HRL, 50-115HRM, 50-115HRR

Test force

588.4, 980.7, 1471N (60, 100, 150kgf)

Max. height of test piece

185mm   (210mm)

Depth of throat

165mm  (165mm)

Min. scale value

0.1HR

Power supply

220V AC or 110V AC, 50 or 60Hz

Dimensions

505 x 250 x 700mm

Weight

approx. 100kg



Standard Accessories:

Large flat anvil

1 pc.

Small flat anvil

1 pc.

V-notch anvil

1 pc.

Steel ball penetrator

1/8", 1/4", 1/2", 1 pc. Each

Plastic Rockwell standardized block

4 pcs.
