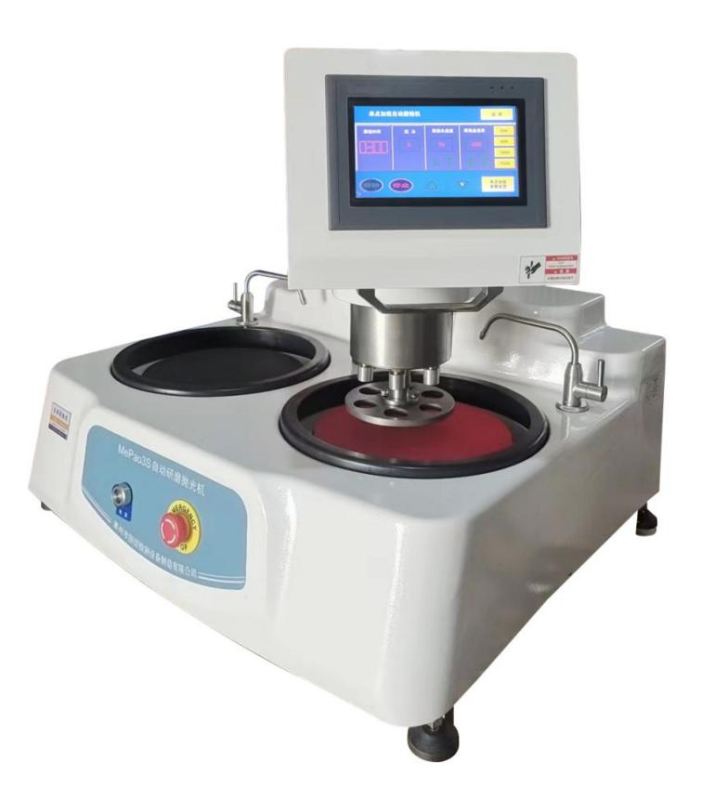

MP-2000 Automatic Metallographic Grinding Polishing machine

advanced automatic grinder polisher factory price

This machine is a double-disk automatic single-point pressurized bench top metallographic grinding and polishing machine, is based on international standards, using international advanced technology to manufacture a new generation of high-precision, automated grinding and polishing equipment for the sample making process, the use of advanced microprocessor control system, so that the grinding and polishing discs, grinding and polishing the head of the rotational speed of the realization of infinitely variable; in the human-computer interaction using a touch-screen, so that the sample making pressure, time, positive and negative direction of the setting more intuitive, convenient; that is, the display speed, pressure, time, and the display speed, pressure, time. In the human-machine interaction, the touch screen is adopted, which makes the setting of pressure, time, forward and reverse direction more intuitive and convenient. Only need to replace the grinding and polishing disk or sandpaper and fabric to complete the operation of grinding and polishing process. It has the features of smooth rotation, safety and reliability, low noise, strong rigidity, etc., which makes this machine show a wider range of applications.This machine has two sets of water cooling device can be in the grinding of the specimen cooling, in order to prevent the specimen overheating and damage to the metallurgical organization and at any time the abrasive particles will be flushed and discharged; the body of the machine is made of ABS plastic material, the appearance of novel and beautiful, anti-corrosion and rust. The grinding and polishing head is equipped with a locking handle, which is convenient for the rotation of the grinding and polishing head and easy to operate.

This automatic grinding and polishing machine is suitable for rough grinding, fine grinding, rough polishing to fine polishing process of metallographic specimens for automatic sample making, and has a high production accuracy, roughness is not greater than 0.2Ra, can be adapted to a variety of materials in the preparation of specimens, grinding and polishing disk speed independent operation, low noise, easy to operate, beautiful appearance, safe to use, is the enterprise, scientific research units and universities and colleges and universities laboratories of the ideal equipment for the preparation of samples.

Technical Parameters

1Operating voltage220V 50HZ

2Grinding disk diameterΦ 254mmCustomizable φ 230mm300mm

3Rotation speed of mainframe10-1400rpm(Infinitely variable speed);

200rpm,600rpm,1000rpm,1400rpm(four-stage speed control), can be

rotated clockwise/counterclockwise

4. Grinding and polishing head speed: 5-200r/minStepless speed regulation

5Screentouch screen operation

6Direction of grinding and polishingselectable forward and reverse

7Specimen clamping quantity6pcs

8Specimen clamping specifications

factory standardφ 30mm(customizableφ 22,45mm)

9Working Air Pressurenot less than0.4MPa

10. Sample preparation time0-9999 secondS

11. Power1500W     Power supply220V/50HZ

12. Machine size710mmX760mmX680mm,packing size:780X810X820mm

13. NW/GW:96kgs/120kgs

Instrument Configuration

Main machine 1 pc                            Polished cloth:Φ 250mm   2 pcs

Metallographic sandpaper:Φ 250mm  8 pcs        Aluminum buckles: Φ 250mm   2 pcs

Drain pipe: 1 pc                                 Water inlet pipe : 1 pc

Pressure-resistant tubes: Φ8  1 pc               Oil-water separator: 1 pc

Magnestic disc 2 pcs                            Anti-stick disc : 5 pcs
