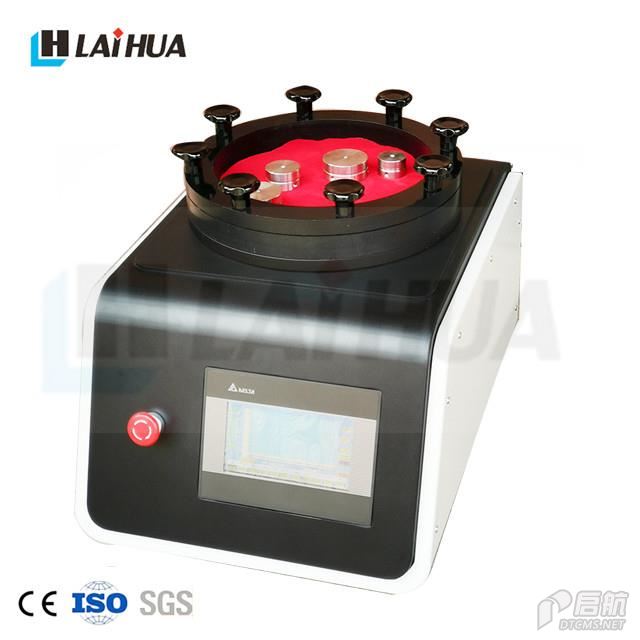

LVP-300 Vibration Polishing Machine
Metallogarphic Polishing machine Manufacturer
Model LVP-300 vibration polishing machine is designed for reaching the high quality polishing and reducing the equipment dependence on staff skills.
It uses a spring plate and a magnetic motor to produce vibration in the upper and lower directions. The spring plate between the polishing disc and the vibrating body is angled so that the sample can move circularly in the disc.
The operation is simple and the applicability is wide. It can be applied to almost all kinds of materials.
Technical Parameter:
Polishing Disc Diameter
300mm
Abrasive Paper Diameter
300mm
Power
220V, 1.5kw
Voltage Range
0-260V
Frequency Range
25-400Hz
Max. Setup Time
99 Hours 99 Minutes
Sample Holding Diameter
Φ22mm, Φ30mm, Φ45mm
Dimension
450×565×400mm
Net Weight
90kg
