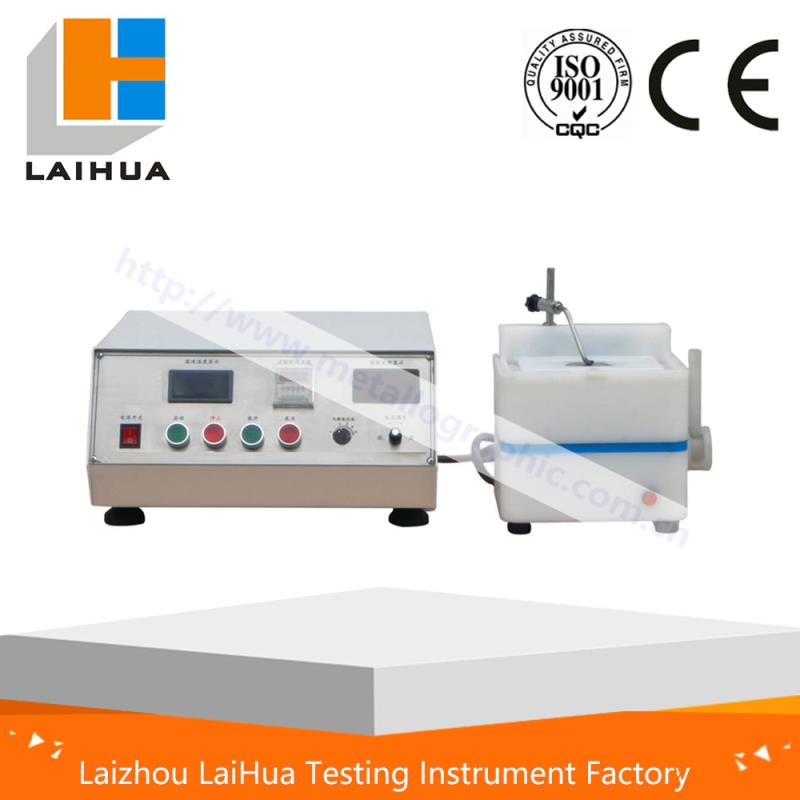

LEP-2 Electro Polishing and Etching Machine
Electro Polishing and Etching Machine
LEP-2 electro polishing and etching machine is a metallographic sample preparation machine which combines electrolytic polishing and etching function, suitable for use in factories, universities, research institutions and other laboratories.
The machine uses the electrochemical principle to do metallographic sample preparation. The samples which adopt electrolytic polishing and etching avoid the deformation layer caused by the mechanical polishing, so the organization is true without illusion.
It is the best method of preparation of titanium, aluminum, copper and other non-ferrous metals and high-temperature alloy samples.
Technical Parameter:
Technical Parameters:
|
Input power |
AC 220V, 10A (max) |
|
Electrolytic output |
DC 0~60V / 0~25A, continuously adjustable (1V), digital display |
|
Time display |
work time can be set |
|
Electrolyte capacity |
300~1000ml |
|
Electric box dimension |
450×420×230mm |
|
Corrosion workbench |
270×230×320mm |
|
Weight |
25kg |
