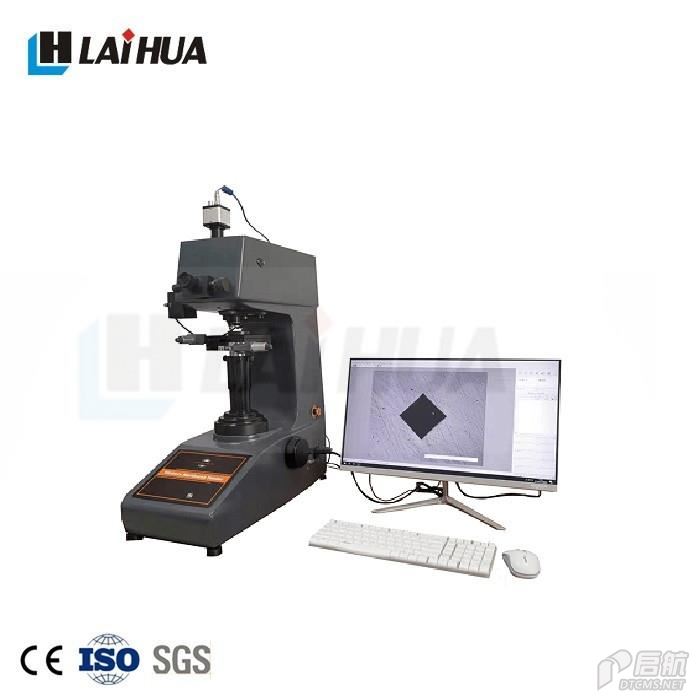

ZHV2.1 Fully Automatic Micro Vickers Hardness Tester
Micro hardness tester, China Micro vickers hardness tester factory
Features:
* Fully Automatic with Contour Scan function --- Users can choose whether to approach the entire section or a partial segment of a contour. The measurement system scans the entire route and stores all data in the program.
*The instrument offers a large and well arranged test area. X-Y slide with high precision optic path measurement system makes automatic displacement available. Optional Z axis can achieve the function of automatic focusing.
Technical Parameters:
1. Testing scales:
Vickers Scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Knoop Scales: HK0.01, HK0.025, HK0.05, HK0.1, HK0.2, HK0.3, HK0.5, HK1
2. Units of the test forces: gf,mN
3. Test forces: (gf) 10, 25, 50, 100, 200, 300, 500, 1000(1K)
(m N) 98, 245, 490, 980, 1960, 2940, 4900, 9800
4. Selection of the test force: Turn the test force changing hand wheel. The chosen test force will be shown on the screen.
5. Carriage-loading control: Automatic (loading/dwell/unloading)
6. Dwell time: 0-95 seconds (5 seconds as the increase amount)
7. Test mode: HV/HK
8. Hardness value: Measure the indentation by hand, and the measurement reading will be input automatically. The calculation and the indication of the hardness value are automatic. (main machine)
9. Language: English
10. Optical system
Objectives |
10×(observation) |
20×(measurement) |
40×(measurement) --2 pieces |
Lateral Microscopes |
10× |
||
Total Amplifications |
100×(observation) |
200×(measurement) |
400×(measurement) |
Max. Measurement Field |
|
400μm |
200μm |
Resolving power |
|
0.03μm |
0.015μm |
11. X-Y Testing Table
Dimension: 100×100mm
Travel: 25×25 mm
Resolving Power: 0.01mm
12. Z Axis: Automatic focusing (optional)
13. Specimen
The Maximum Height: 90mm
The Maximum Depth: 120mm (measured form the center)
14. Energy-saving mode: After 10 minutes of non-use it enters the repose mode automatically.
15. Light Source: 12V/20W
16. Illumination of the light source: Several grades, adjustable
17. Power source: 220V, 50/60Hz
18. Dimension of the instrument: 495×305×550mm
19. Weight of the instrument: About 33kg
