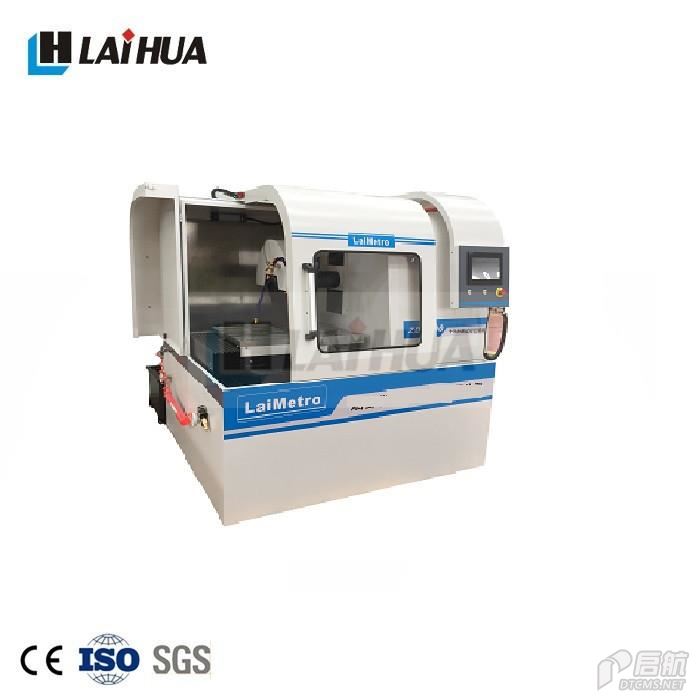

ZDQ-500 Customized Large Metallographic Cutting Machine

Description:

Model ZDQ-500 is a large automatic metallographic cutting machine which adopts Mitsubishi PLC controlling system and servo motor.

It can be automatically controlled in X, Y, Z direction very precisely and cutting feed can be changed according to the material hardness thus can achieve fast and precise cutting effect;

It adopts frequency control to adjust the cutting speed; very reliable and controllable;

It adopts touch screen in relation to human-computer interaction; on the touch screen shows various cutting data.

It is applicable to cut various metal and non-metal materials, especially for those large work pieces so as to observe the structure . With automatic operation, low noise, easy and safe operation, it is an important equipment for sample preparation in laboratories and factories.

Main Technical Parameters:

Manual/automatic operation can be switched at will.Three-axis simultaneous-motioned ; 10” industrial touch screen;

Diameter of abrasive wheel: Ø500xØ32x5mm

Cutting feed speed：3mm/min, 5mm/min, 8mm/min, 12mm/min (customer can set speed according to their need)

Working table size:600*800mm(X*Y)

Distance of travel: Y--750mm, Z--290mm, X--150mm

Max cutting diameter:170mm

Volume of cooling water tank:  250L；

variable frequency motor: 11KW,  speed:100-3000r/min

Dimension:1750x1650x1900mm (L*W*H)

Machine type: Floor-type

Weight:about 2500Kg

Power supply: 380V/50Hz

Note: Parameters can be customized according to customer request.
