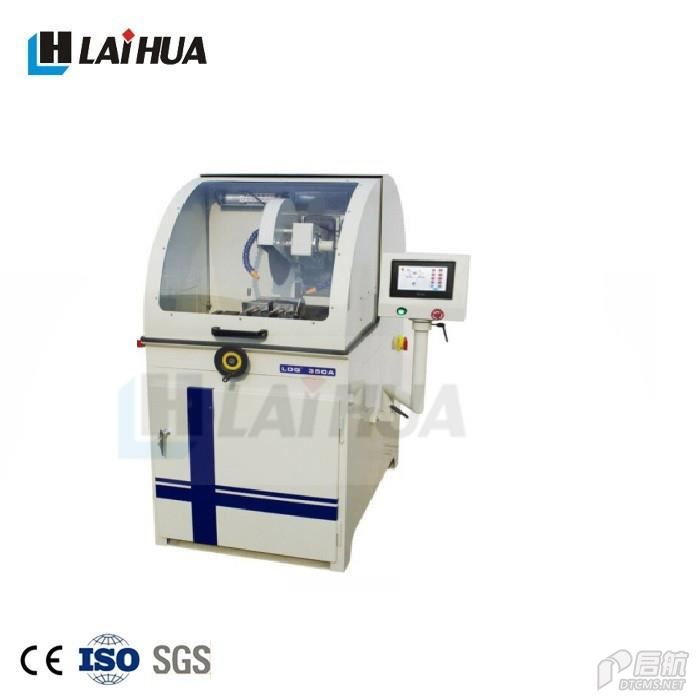

LDQ-350A Metallographic Cutting Machine
Large customized Metallographic Sample Cutting Machine
1.Introduction
This machine is an automatic/manual integrated metallographic cutting machine. Mitsubishi programmable controller, with very high reliability, strong control capability; Touch screen is used in man-machine exchange. High precision stepper motor is used in control. Suitable for cutting all kinds of metal, non-metal material samples, in order to observe the material metallographic, lithographic structure. The machine has the advantages of automatic/manual interchange of cutting process, low noise, simple
operation, safety and reliability, and is one of the important equipment for making solid material samples in modern laboratory.
2.Technical Feature
|
Model |
LDQ-350A |
|
Body Form |
Floor Unibody |
|
Cutting Mode |
Push-type intelligent cutting, cut-type intelligent cutting, layered intelligent cutting |
|
Control System |
7 inch color touch screen, PLC control |
|
Cutting sheet specification |
Ø350×2.5×Ø32mm |
|
Cutting Speed |
2800r/min |
|
Cutting feed speed range |
0-3mm/s（The user can modify the setting speed as required） |
|
Table Size |
500×400 mm（X×Y） |
|
Maximum travel distance of X axis |
80mm(optional) |
|
Maximum travel distance of Y-axis |
300mm |
|
Z-axis maximum travel distance |
200mm |
|
Maximum cutting diameter |
120mm |
|
Clamp |
Quick clamp, opening 300mm |
|
Cooling tank volume |
100L |
|
Fog removal mode |
Oil mist separator (optional) |
|
Lighting System |
LED Lighting |
|
lubricating system |
Automatical |
|
Cutting motor |
7.5Kw |
|
Main motor power |
10Kw |
|
Power |
380V,50Hz |
|
Size |
1400mm*1100mm*1820mm |
|
Weight |
600Kg |
|
Standard Configuration： |
|
|
Main Machine |
1 set |
|
Cutting discs |
2 pcs |
|
Clamp |
1 set |
|
Spanner |
2 pcs |
|
Scrap Box |
1 set |
|
Inlet pipe |
1 pc |
|
Return pipe |
1 pc |
|
Optional： |
|
|
Equip with |
Special fixture |
|
Common consumables (optional) |
|
|
Oil mist separator |
1 set |
|
Cutting disc |
Different types of cutting pieces can be provided according to different materials and different hardness |
|
Form-preserving cooling lubricant |
The best lubricant can be selected according to the different materials being cut |
