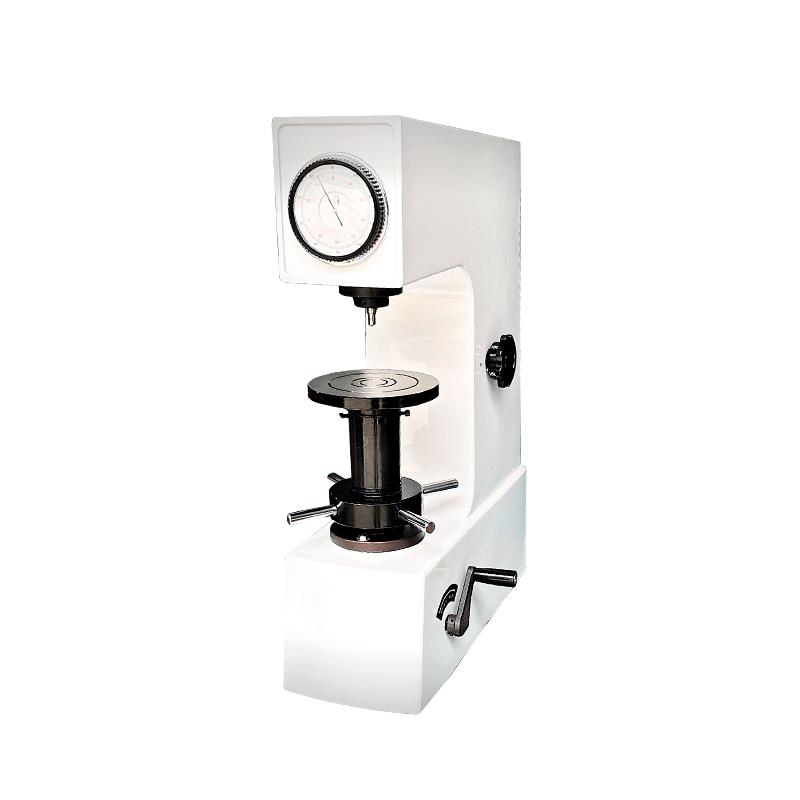

XHR-150 Plastic Rockwell Hardness Tester

Model XHR-150 Manual Plastic Rockwell Hardness Tester

1The machine has steady performance, precise display value and easy operation.

2Frictionless loading shaft, high precision testing force

3HRL, HRM, HRR scale can be read direct from the gauge.

4Adopts precision oil pressure buffer, loading speed can be adjusted;

5Manual testing process, no need for electric controlling；

6Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

Application:

Suitable to determine the hardness of soft materials such as plastics, composite materials, various friction materials, soft metals and non-metals.

Technical Parameter:

Measuring range: 70-100HRE, 50-115HRL, 50-115HRR, 50-115HRM

Initial Test Force: 98.07N (10Kg)

Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)

Max. height of test piece: 170mm   （or 210mm）

Depth of throat: 135mm  （or 160mm）

Type of indenter: ф3.175mm,  ф6.35mm,  12.7mm ball indenter

Unit for display: 0.5HR

Hardness Display: dial gauge

Measuring scale：HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Dimensions: 466 x 238 x 630mm/520 x 200 x 700mm

Weight: 78/100kgs
