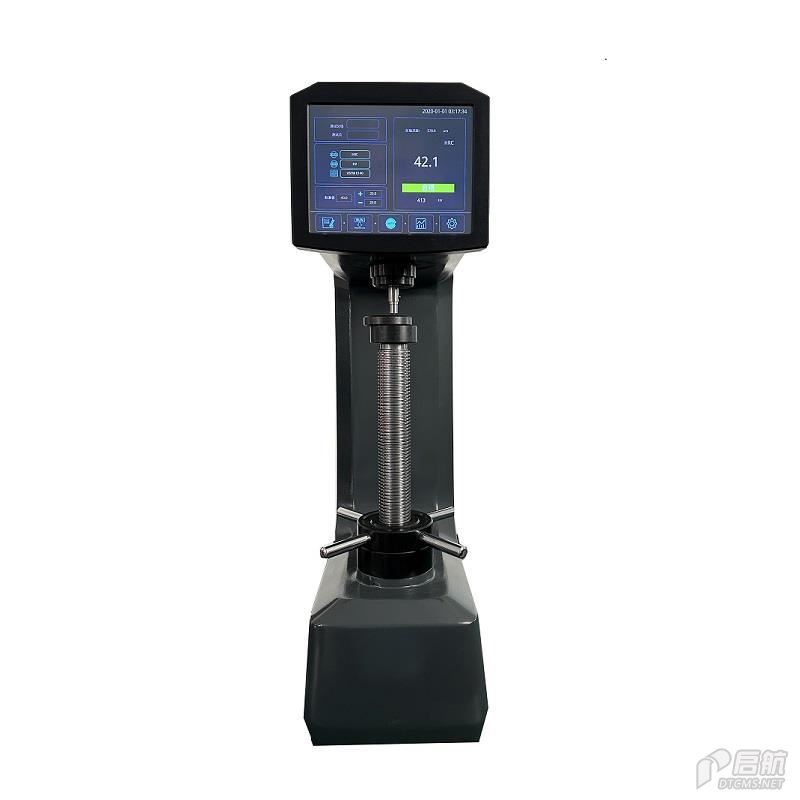

HRS-150S Touch screen Rockwell Hardness Tester
Touch screen Rockwell hardness tester
Application:
* Suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials.
* Widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
* Especially suitable for the precise measurement of parallel surface and steady and reliable for measurement of curved surface.
Technical Parameter:
Test range:20-88HRA,20-100HRB,20-70HRC
Test force:10kgf
Total test force:588.4N, 980.7N, 1471N(60, 100, 150kgf)
Max height of test piece:185mm
Depth of throat :165mm
Indenter type:diamond indenter, ф1.588mm steel ball indenter
Loading Method: Automatic (Loading/Dwell/Unloading)
Display unit:0.1HR
Hardness display :LCD display
Measurement scale:HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Conversion scale:HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Data output:RS232 Interface, blue-tooth printer
Power: 220V 50/60HZ
Dimension:520 x 215 x 700mm
Weight:NW. 80KG,GW. 100KG
Dimension: 520×215×740mm, Packing Dimension: 650×370×980mm
Standard configuration:
Instrument main body |
1 pc |
Diamond Rockwell Indenter |
1 pc |
1/16” Steel Ball Penetrator |
1 pc |
Large anvil |
1 pc |
Small anvil |
1 pc |
V type anvil |
1 pc |
Hardness Block HRA |
1 pc |
Hardness Block HRC (High, middle, Low) |
1 pc |
Hardness Block HRB |
1 pc |
Power line |
1 pc |
Printer |
1 pc |
Wrench |
2 pcs |
