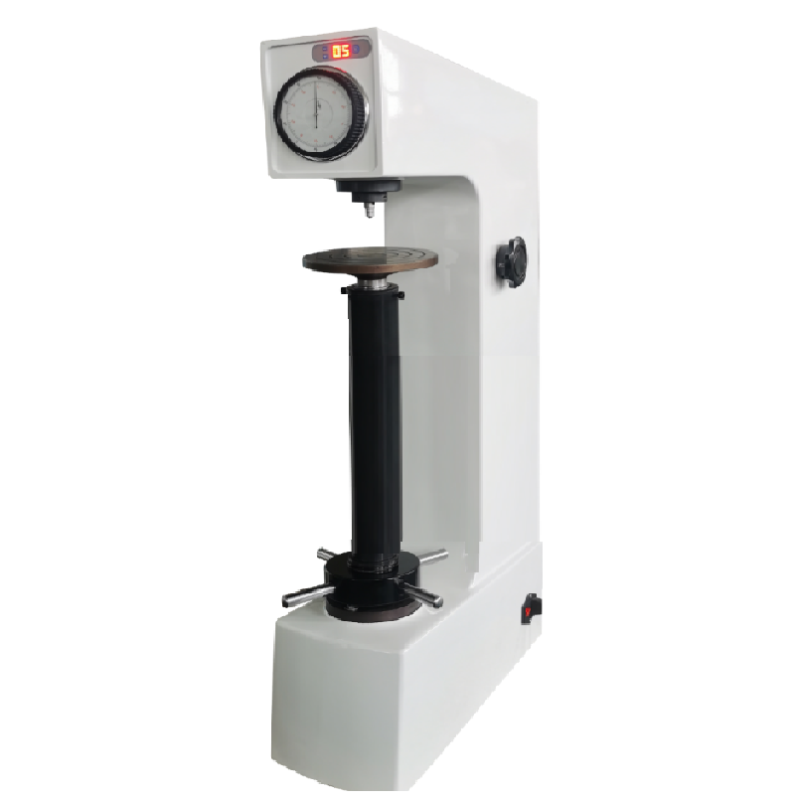

HRD-150B Motor-driven Highetened rockwell hardness tester
china supplier rockwell hardness tester
Features:
Frictionless loading shaft, high precision testing force
After preliminary test force is applied, the handwheel will lock automatically. Automatic testing process, no human operating error
Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18
Applications:
It is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
Specification:
|
Model |
HRD-150B |
|
Measuring range |
20-88HRA, 20-100HRB, 20-70HRC |
|
Test force |
588.4, 980.7, 1471N (60, 100, 150kgf) |
|
Max. height of test piece |
400mm |
|
Depth of throat |
165mm |
|
Min. scale value |
0.5HR |
|
Power supply |
220V AC or 110V AC, 50 or 60Hz |
|
Dimensions |
500 x 250 x 700mm |
|
Weight |
approx. 98kg |
Standard accessories
|
Large flat anvil: 1 pc. |
Small flat anvil: 1 pc. |
|
V-notch anvil: 1 pc. |
Diamond cone penetrator: 1 pc. |
|
1/16" steel ball penetrator: 1 pc. |
Rockwell standardized block: 5 pcs |
|
|
|
