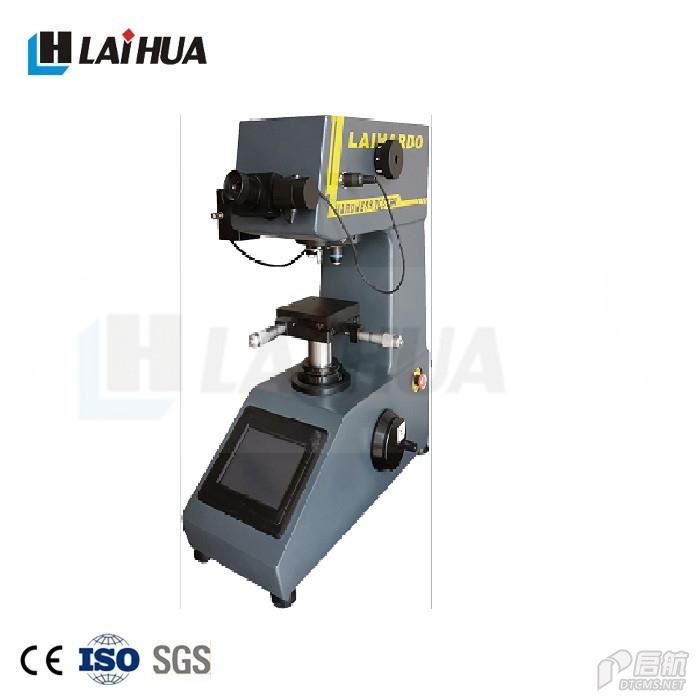

MHV-5/10/30/50 Large Screen Digital Vickers Hardness Tester
Vickers hardness tester manufacturer in China
Features and Applications:
*High-tech and new product combining the optics, mechanic and electrics features.
*Adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value.
*Adopts LCD display screen,visual and clear, easy to operate.
*With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly show the test force, indentation length, dwell time, test numbers, conversion scale, date and time.
*Press the eyepiece button after measuring the indentation length,and it can automatically get the hardness value and shows on the screen.
*Test results can be saved in real time with automatic calculation of maximum, minimum and average value, the data can be arbitrary deleted and printed out, and with RS232 interface for connecting to the computer.
*It can be equipped with LCD video measuring device and CCD image automatic measuring system.
* Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Technical Parameter:
Measuring range:5-3000HV
Test force: 2.942,4.903，9.807, 19.61, 24.52, 29.42, 49.03, 98.07N(0.3,0.5,1,2, 2.5, 3, 5, 10kgf） (vary from model)
Hardness scale:HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10 (vary from model)
Lens/indenters switch: MHV-5/10/30/50: with hand turret
MHV-5/10/30/50A: with auto turret
Testing Force Application Method: Automatic loading and unloading
Reading microscope: 10X
Objectives:10X, 40X
Magnifications of the measuring system:100X, 400X
Effective Field of View：10×：800μm，40×：200μm
Min. Measuring Unit：10×：0.25μm，40×：0.06μm
Dwell Time: 5~60S
Light source: halogen lamp
Data output: in-built printer
X-Y Test Table:Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. height of test piece：170mm
Depth of throat：130mm
Power supply：220V AC or 110V AC, 50 or 60Hz
Dimensions：530×280×630 mm
Packing Dimension: 620×450×760mm
Weight: approx 35kg/47kg
Standard accessories:
|
Main unit 1 |
Horizontal Regulating Screw 4 |
|
Reading microscope 1 |
Level 1 |
|
10x, 40x objective 1 each (with main unit) |
Fuse 1A 2 |
|
Diamond Vickers Indenter 1 (with main unit) |
Halogen Lamp 1 |
|
XY table 1 |
Power Cable 1 |
|
Hardness Block 700~800 HV10 1 |
Screw Driver 1 |
|
Hardness Block 700~800 HV1 1 |
Internal hexagonal wrench 1 |
|
Certificate 1 |
Anti-dust Cover 1 |
|
Operation Manual 1 |
Printer operation manual 1 |
|
In-built Printer 1 |
|
