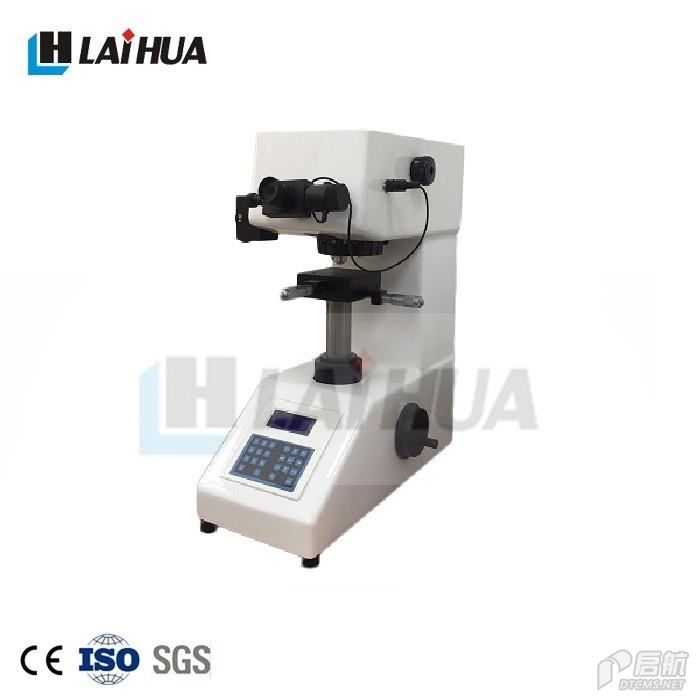

HVS-1000/Z Economic type Digital Micro Hardness Tester
Digital micro hardness tester, digital micro vickers hardness tester
Features and Applications:
*Economic type, cost-effective, reliable, easy operation and intuitive;
*HV/HK scale, light, and dwell time can be set through operation panel;
*Put in the diagonal length and hardness value can be shown on LCD screen; no need to refer to sheet;
*Hardness value, measuring method, test forces value, dwell time, number of measurement can be shown on LCD screen;
*in-put halogen lamp with long working life;
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Technical Parameter:
Testing Range: 1HV~2967HV
Test Force: 0.098,0.246,0.49,0.98,1.96,2.94,4.90,9.80N (10,25,50,100,200,300,500,1000 gf)
Max Height of the Specimen: 90mm
Depth of throat: 90mm
Lens/indenters with: HVS-1000 With hand turret
HVS-1000Z With auto turret
Carriage Control: Automatic(loading /holding-up of the load/unloading)
Reading microscope: 10X
Objectives: 10x, 40x
Total amplification: 100×,400×
Dwell Time of the Test Force: 5-60s
Min.Graduation Value of the Testing Drum Wheel: 0.0625um
Dimension of the XY Table: 100×100mm
Travel of the XY Table: 25×25mm
Light source/Power Supply: 220V,60/50Hz
Dimensions: 490*205*530mm
Package dimension: 550*370*800mm
Net weight/Gross weight: 30kg/45kg
Standard delivery:
Main unit 1 |
Horizontal Regulating Screw 4 |
Reading microscope 1 |
Level 1 |
10x, 40x objective 1 each |
Fuse 1A 2 |
Diamond Micro Vickers Indenter 1 |
Halogen Lamp 1 |
Weight 6 |
Power Cable 1 |
Weight Axis 1 |
Screw Driver 2 |
XY Table 1 |
Hardness Block 400~500 HV0.2 1 |
Flat Clampting Test Table 1 |
Hardness Block 700~800 HV1 1 |
Thin Specimen Test Table 1 |
Anti-dust Cover 1 |
Filament Clamping Test Table 1 |
Operation manual 1 |
Certificate 1 |
|
