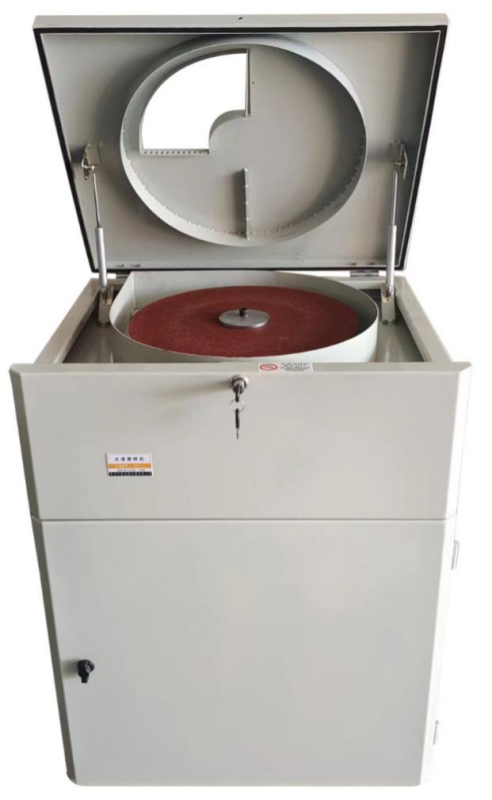

MYJ-1 Spectrum Grinding Machine

This machine is mainly used for the surface preparation of spectral analysis samples and the grinding of metal, ceramic, glass and other devices.

product description

This machine is mainly used for the surface preparation of spectral analysis samples and the grinding of metal, ceramic, glass and other devices.

² This machine has a compact structure, single disc and dual speed, and can be equipped with grinding wheels of different particle sizes and hardness for grinding.

² The machine uses the end face of the grinding wheel to rotate and grind the sample surface.

² It has a dust removal device, which sucks sand and dust into a closed water tank while grinding the sample to avoid polluting the environment.

² It has stable rotation, low noise, easy operation, high work efficiency, and a safe and reliable protective cover, which is suitable for laboratories in factories and scientific research institutions.

 Technical Parameters

Grinding disc diameter

400mm

Grinding disc speed

1400r/min2800r/minTwo-stage speed control

Input voltage

AC three-phase  380V50Hz

input power

2KW

Dimensions

590×580×1020mm

Net weight

80KG
